結構組成Structural composition：

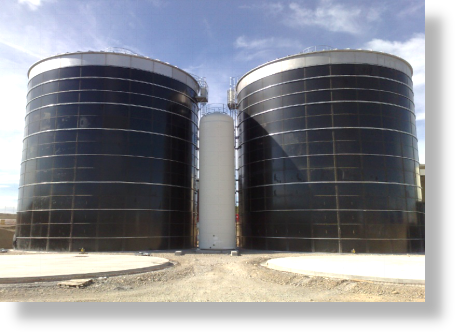

裸罐結構介紹Introduction of tanks structure：

產品特點：

(Products Features)

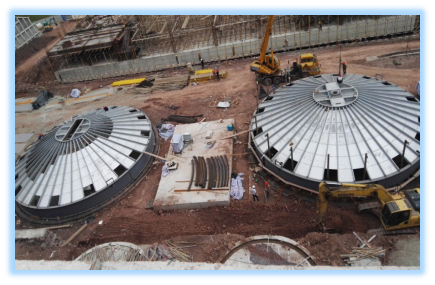

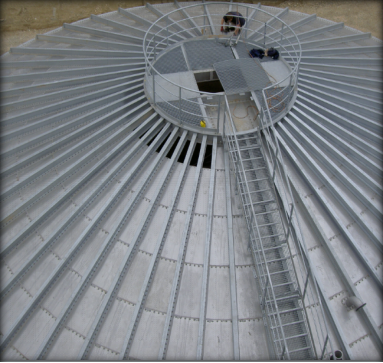

罐頂采用不銹鋼結構，螺栓拼接

(Stainless steel structures bolted, used in tanks roof.)

罐子氣相區采用不銹鋼材質，從材料學上做到徹底防腐

(Stainless steel material used in tanks' upper gas area, for complete anti-corrosion from the degrees of basic materials.)

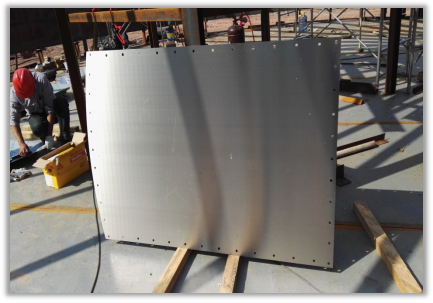

罐壁采用螺栓拼裝，工廠加工制作的標準板

(Factory pre-fabricated standard plates bolted together into the tanks wall.)

拼裝板交接處形成罐體骨架結構，交接處材料厚度大于焊接罐壁板厚度，密集的螺栓可承載高強度的剪切應力

(Joint area of bolted tank plates forms skeleton support structure, Material thickness of joint area is larger than welded tank plates, Dense bolts in tank body can bear high strength shear stress.)

耐候密封膠

(Weatherability sealant)

罐體提升裝置保證安裝過程的平穩提升，降低應力集中

(Lifting equipment ensures stable lift of tank body during installation process, for decreasing stress concentration.)

設計原理：強度的保證—輕型結構設計

(Design principle: Ensurance of high-strength: light-weight structure design)

輕型結構設計特點：

(Design features of light-weight structures)

骨架承載重力、剪切、水壓等

(Bone structure bears weight, shear stress, water pressure etc.)

罐壁板承載水壓

(Tank wall plates bears water pressure)

材質的重量降低大大減少了重力承載

(Light-weight material decrease largely the weight bearing capacity.)

骨架結構保證了強度，同時骨架結構可以釋放應力集中，減小負荷的沖擊性

(Bone support structure ensures high strength, at the same time releasing concentration force for decreasing bearing loads impact force.)

細節—生產加工

(Details-Fabrication)

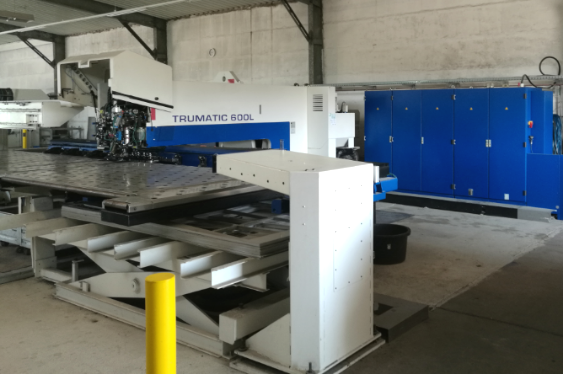

先進的數控激光切割機，由專業的技術人員操作，保證切割精度

Advanced digital-comtrol laser cutting machine, operated by professional technician for ensuring the cutting precious dimension.

先進的數控激光切割機，由專業的技術人員操作，保證切割精度

(Advanced digital-comtrol laser cutting machine, operated by professional technician for ensuring the cutting precious dimension.)

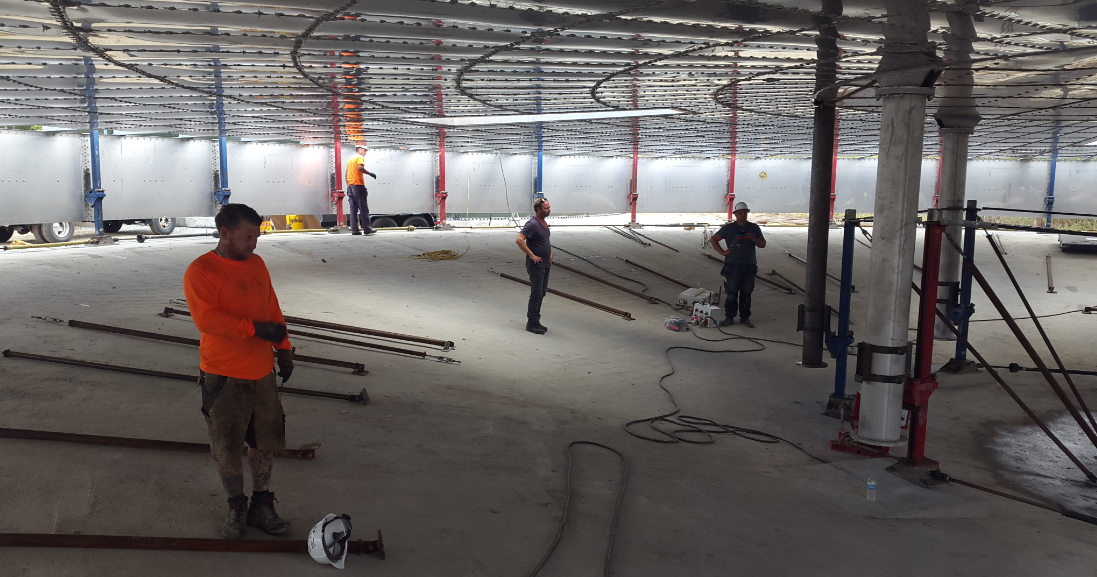

細節—貨到施工現場

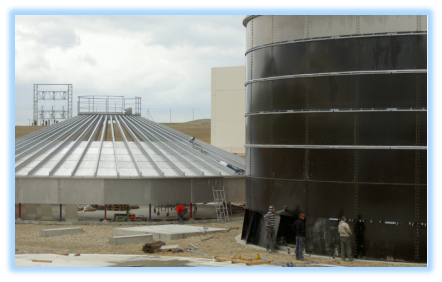

(Details-Products transfered to installation site)

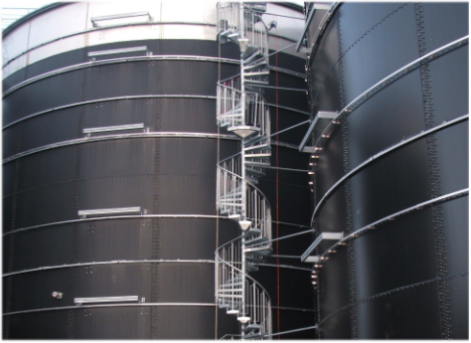

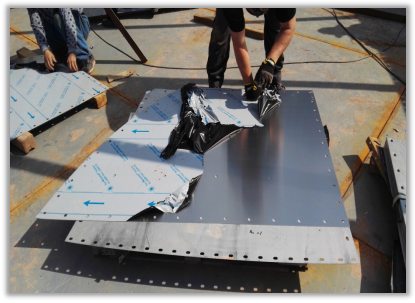

細節—貨到現場

(Details-Products on-site)

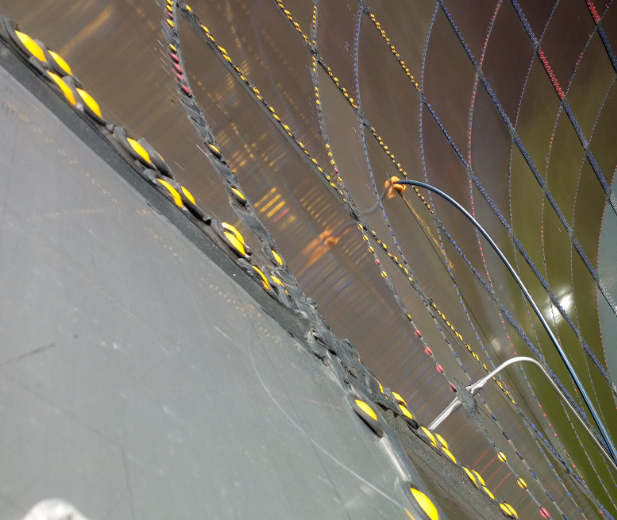

細節—密封膠

(Details-Sealant)

密封膠耐候、耐腐蝕

(Weatherability, Anti-corrosion of Sealant)

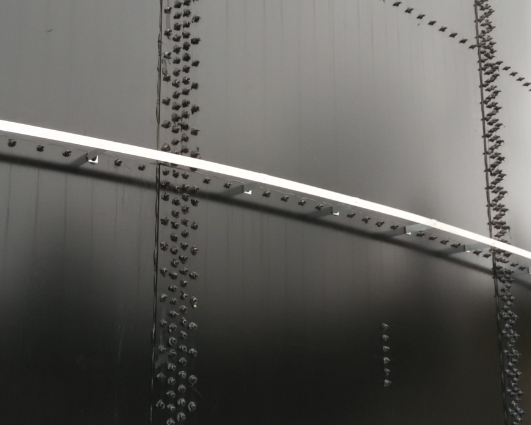

細節—螺栓

(Details-Bolts)

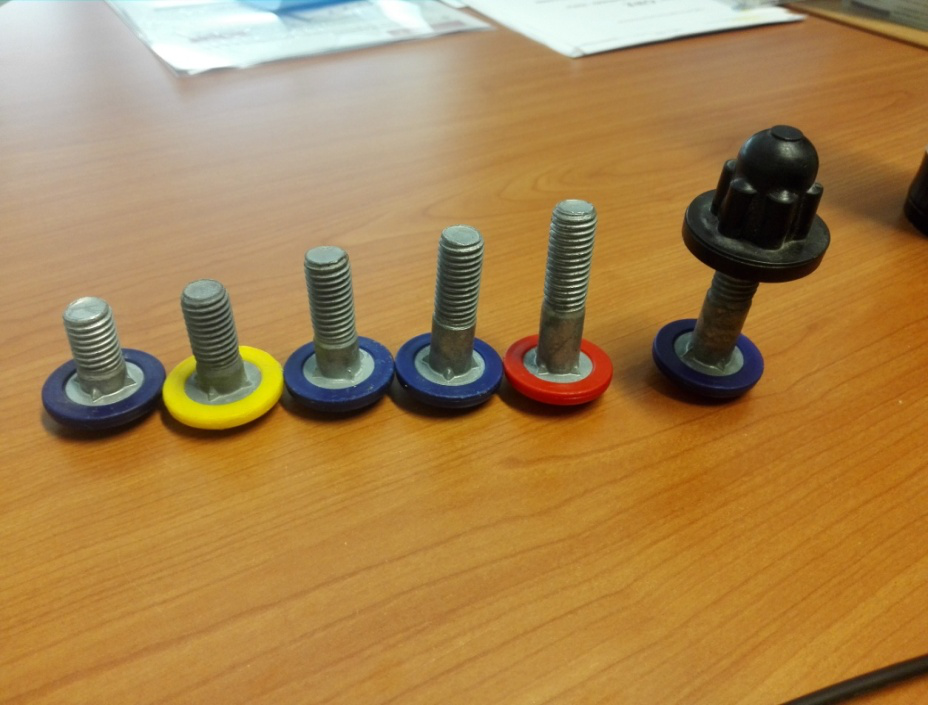

液相區采用圓平頭帶翼（平頭包塑膠蓋）鍍鋅螺栓，氣相區和罐頂采用不銹鋼螺栓

(Galvanized bolts, round flat head with plastic cap and wings, used in liquid ares, Stainless steel bolts used in air area and tank roof)

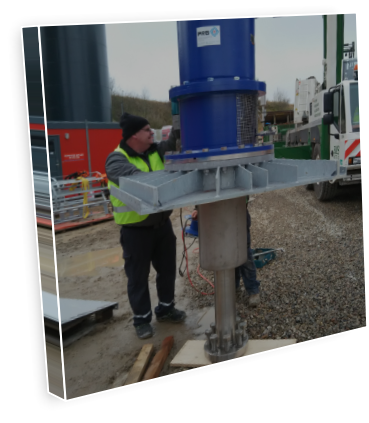

細節—提升裝置安裝

(Details-Lifting equipment for installation)

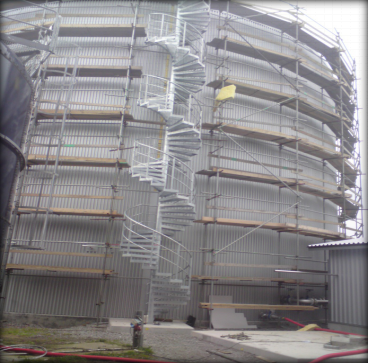

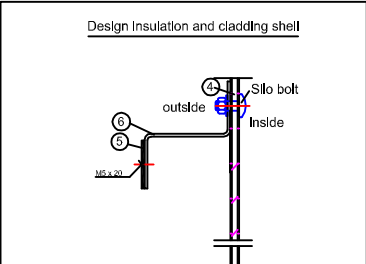

細節—保溫安裝

(Details-Insulation layers installation)

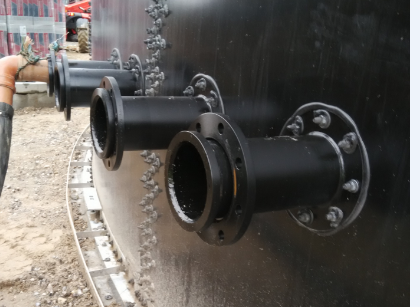

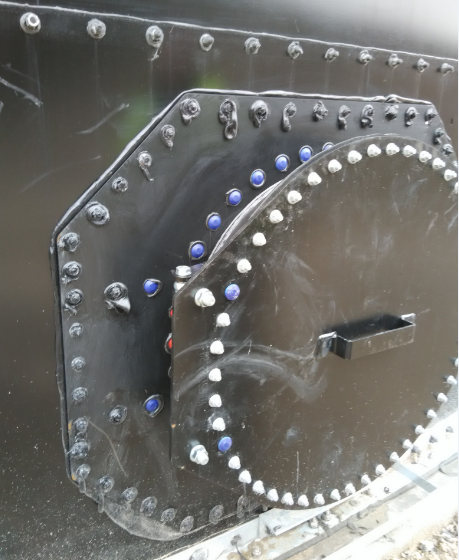

細節—附件鏈接

(Details-Annex installation)

細節—附件鏈接

(Details-Appenex installation)

細節—附件鏈接

(Details-Appenex installation)

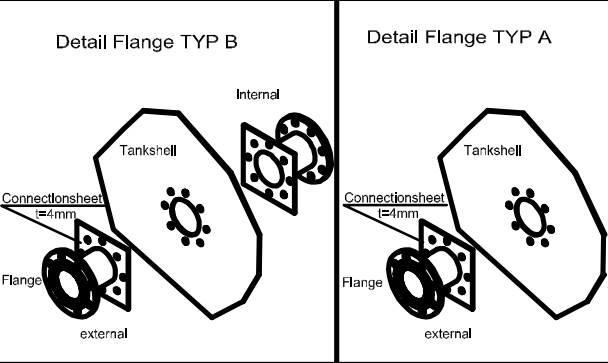

細節—攪拌器安裝法蘭

(Details-Agitator installation flange)

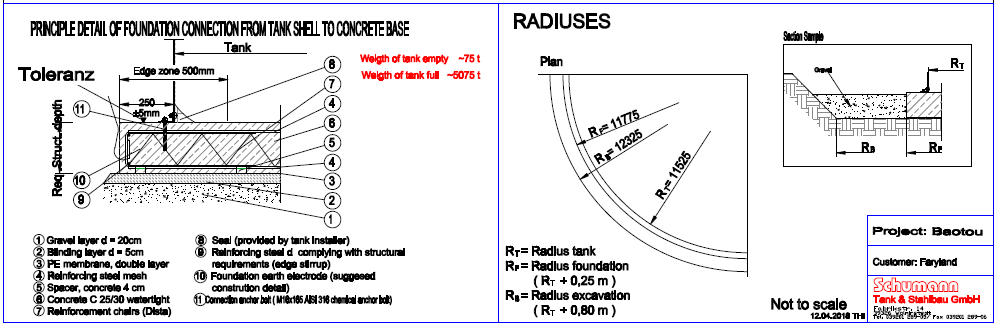

細節—土建地基基礎要求

(Details-Concrete base construction requirement)
